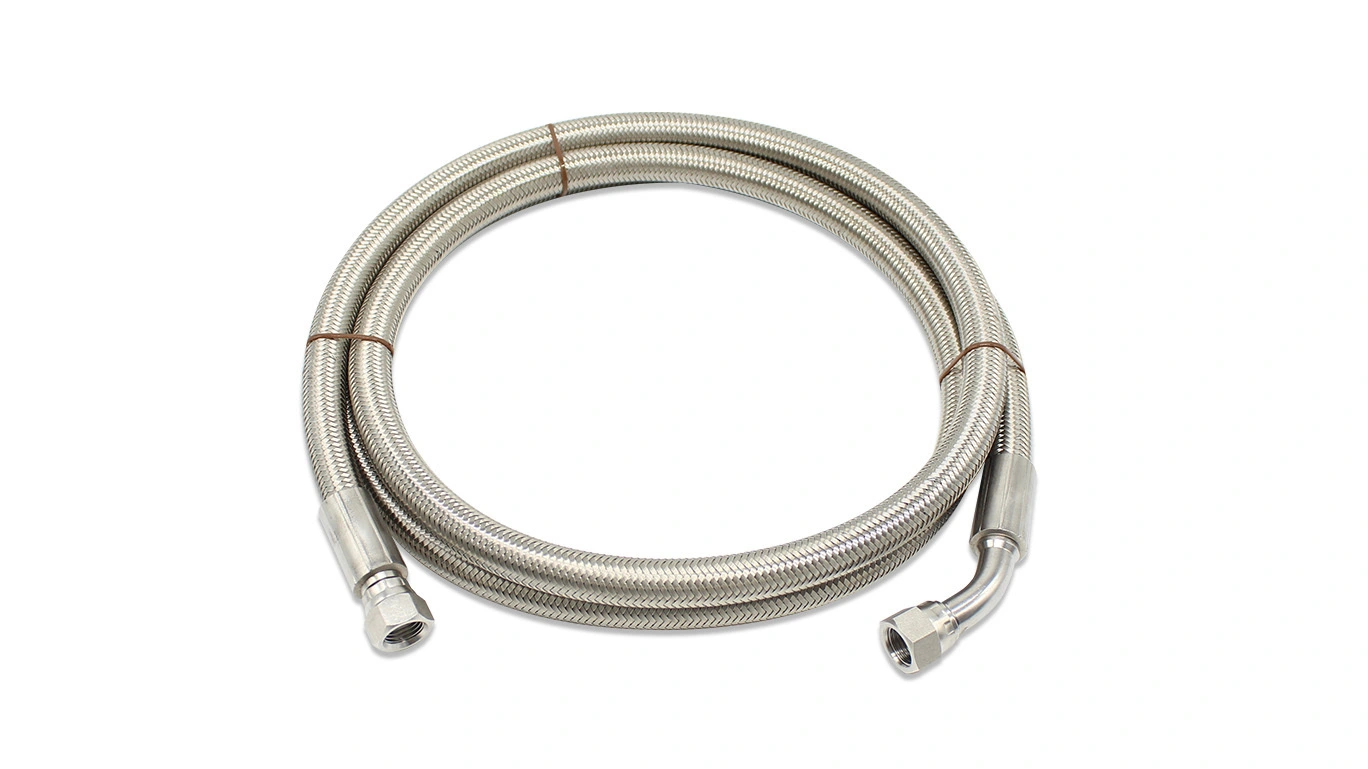

Flexible Convoluted PTFE Braided Hose for Industrial Fluid Transfer
PTFE Features- Excellent high and low temperature resistance
- Outstanding chemical corrosion resistance
- Non-stick and smooth surface for easy flow
- High insulation and dielectric properties
- Exceptional aging resistance and long service life
- Low friction coefficient and good wear resistance
- Wide compatibility with most fluids and gases
- Withstands Extreme Flexing
Description
Product Specification
— Specification —
| Serial | I.D.(inch) | I.D.(mm) | Thickness of tube (mm) | O.D.After Braiding (mm) | Max. W.P.(bar) | Min. B.P.(bar) | Min. Bend Radius (mm) |
| PC14-03 | 3/16" | 5.0 | 0.60 | 10.5 | 130 | 520 | 10 |
| PC14-04 | 1/4" | 6.5 | 0.60 | 12.2 | 125 | 500 | 10 |
| PC14-05 | 5/16" | 8.0 | 0.70 | 13.3 | 112 | 450 | 15 |
| PC14-06 | 3/8" | 10.0 | 0.75 | 15.5 | 110 | 440 | 20 |
| PC14-08 | 1/2" | 13.0 | 0.80 | 19.0 | 88 | 350 | 25 |
| PC14-10 | 5/8" | 16.0 | 0.85 | 22.7 | 70 | 280 | 30 |
| PC14-12 | 3/4" | 19.0 | 1.00 | 27.0 | 65 | 260 | 60 |
| PC14-14 | 7/8" | 22.2 | 1.00 | 30.0 | 62 | 250 | 80 |
| PC14-16 | 1" | 25.0 | 1.00 | 34.0 | 57 | 230 | 85 |
| PC14-18 | 1 1/8" | 28.0 | 1.10 | 35.5 | 55 | 220 | 95 |
| PC14-20 | 1 1/4" | 32.0 | 1.10 | 43.0 | 55 | 220 | 100 |
| PC14-24 | 1 1/2" | 38.0 | 1.40 | 49.5 | 52 | 210 | 155 |
| PC14-32 | 2" | 50.0 | 2.0 | 63.5 | 50 | 200 | 200 |
Product Details

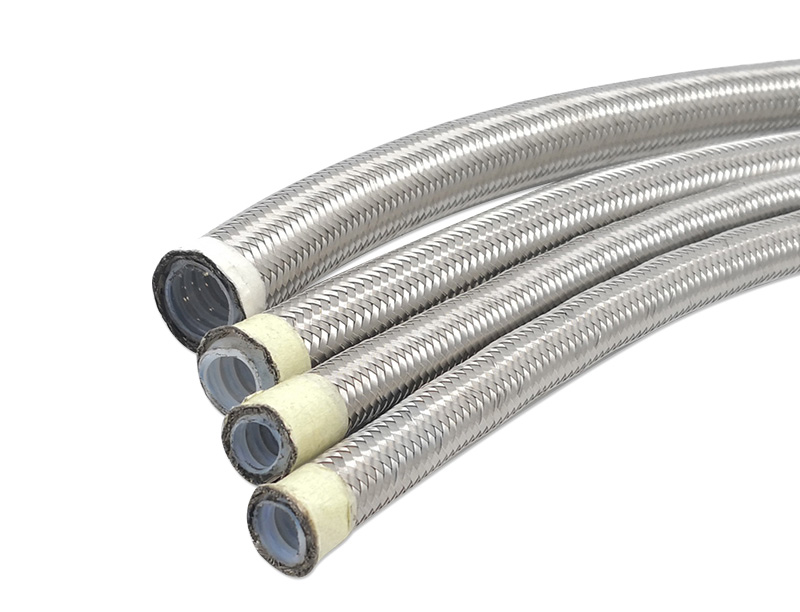

— various PTFE hoses —
PTFE Hose application
Our 304 stainless steel braided smooth PTFE hoses are widely used in hydraulic systems, automotive, chemical processing, food and beverage, pharmaceutical, and industrial machinery. Engineered for high pressure, extreme temperatures, and harsh chemical environments, they ensure stable and safe fluid and gas transfer. The smooth inner wall reduces flow resistance, while the 304 braided layer greatly enhances pressure resistance and durability. With excellent corrosion resistance and long service life, these hoses provide reliable performance in demanding industrial applications.
