6mm, 8mm, 10mm red blue orange color flexible high pressure rubber LPG/gas hose, PASSIONHOSE produce the rubber LPG/gas hose according to the standard BS3212. We also have CE, RoHS certificate, etc, the quality is of a high level.
◪ Durable and Safety.
◪ Good flexibility with excellent kink resistance.
◪ Excellent weather resistance, and aging resistance.
◪ NBR*EPDM material.
◪ With smooth, high pressure.
◪ Cost-effectiveness
Structure:
Inner Tube: NBR material, excellent oil resistance. good physical properties, and good permeability.
Reinforcement: 1500D High tensile polyester fiber wire reinforced.
Outer Tube: EPDM material, excellent heat, ozone, and weathering resistance.
Adhesion: standard adhesion is 1,5 kN/m, and the adhesion of our tubes can reach 2,5 kN/m.
Standard: ISO3821, EN16436, BS3212.
Test: the tensile strength of the inner tube and cover is ≥5MPa.
Certificate: CE certificate.
N-pentane test: the expansion and shrinkage rate is no more than 7%
| Serial | I.D.(inch) | I.D.(mm) | O.D.(mm) | W.P.(bar) | B.P.(bar) |
|---|---|---|---|---|---|
| 1 | 3/16" | 5.0 | 12.0 | 20 | 60 |
| 2 | 1/4" | 6.0 | 13.0 | 20 | 60 |
| 3 | 5/16" | 8.0 | 15.0 | 20 | 60 |
| 4 | 3/8" | 9.5 | 17.0 | 20 | 60 |
BS3212, ISO3821, EN16436 standard
with 60 bar burst pressure, 20 bar working pressure

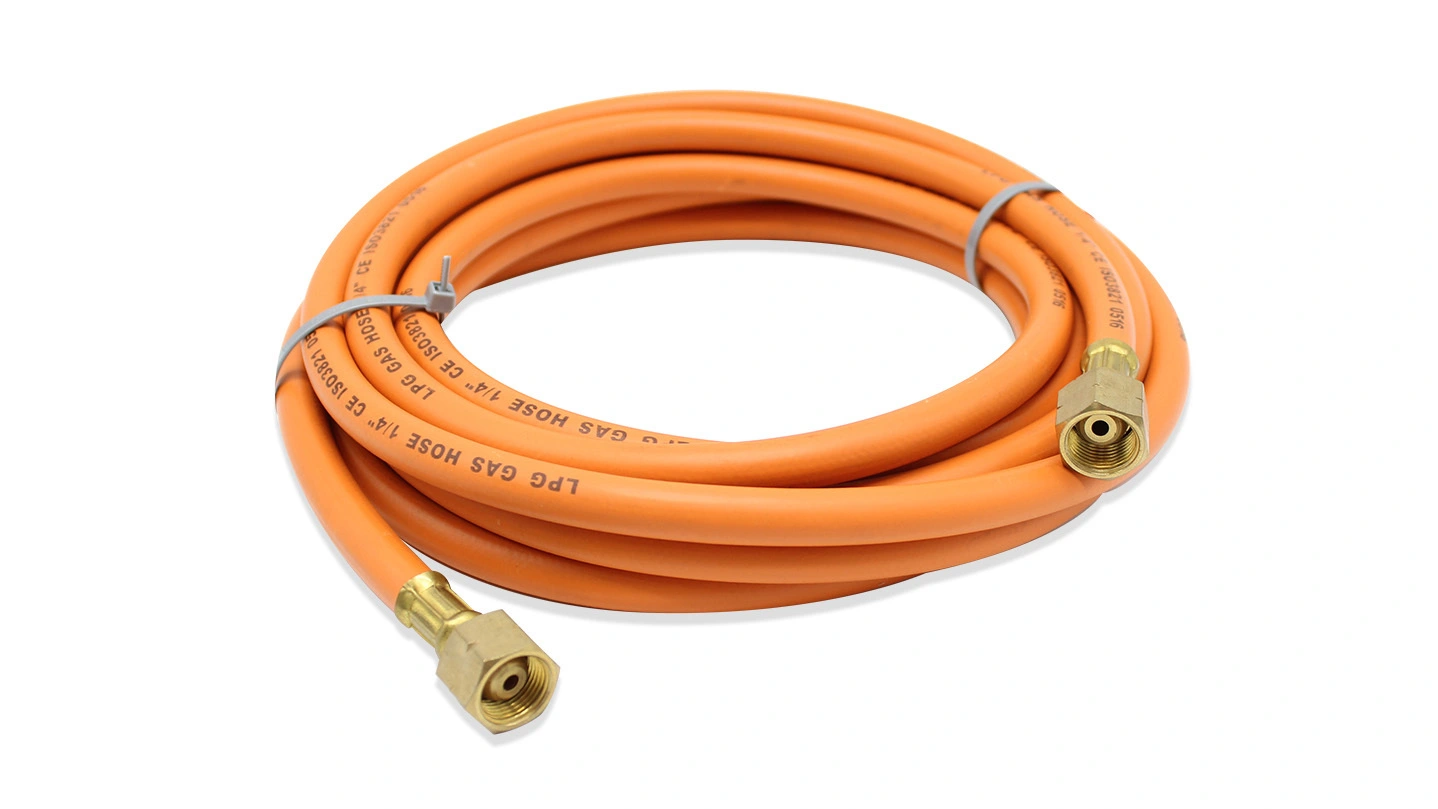

Rubber Gas Hose
with different sizes 6mm, 8mm, 10mm

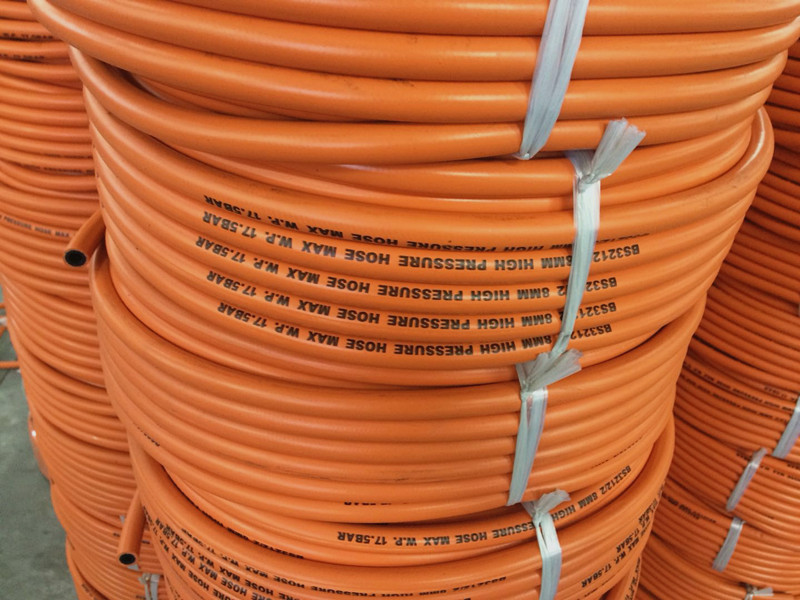

supplied in rolls 5m, 10m, 15m
smooth, and nice appearance
3/8" BSP left-hand fittings
A high-pressure rubber gas hose is reinforced with textile.
It is for delivering gas, LPG, propane, natural gas, etc for industrial application
The hose is with strong permeation resistance with excellent aging resistance.
For Domestic Gas Tanks Application Transferring Liquefied Petroleum Gas
For Gas Stove
