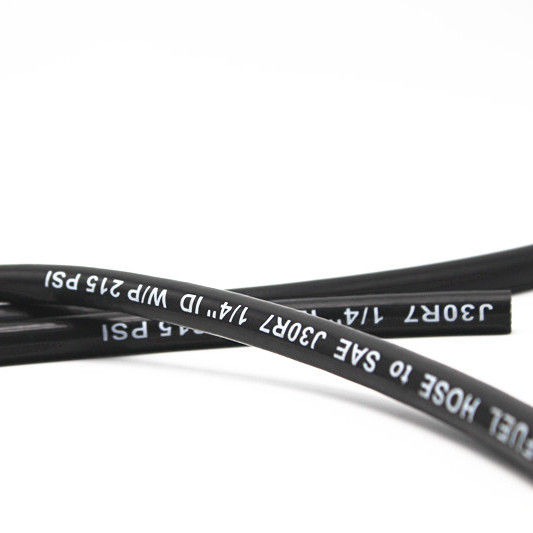

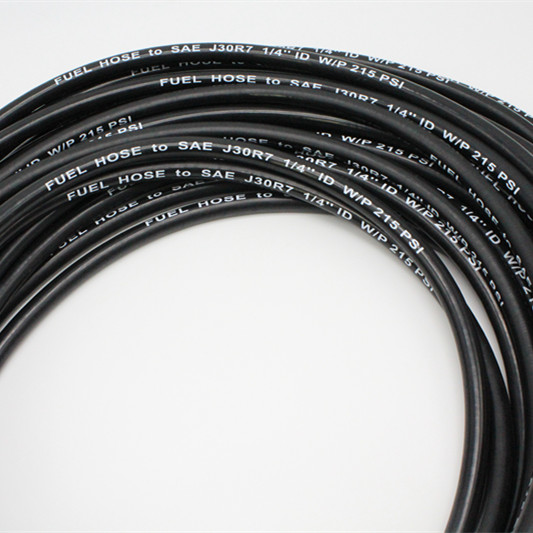

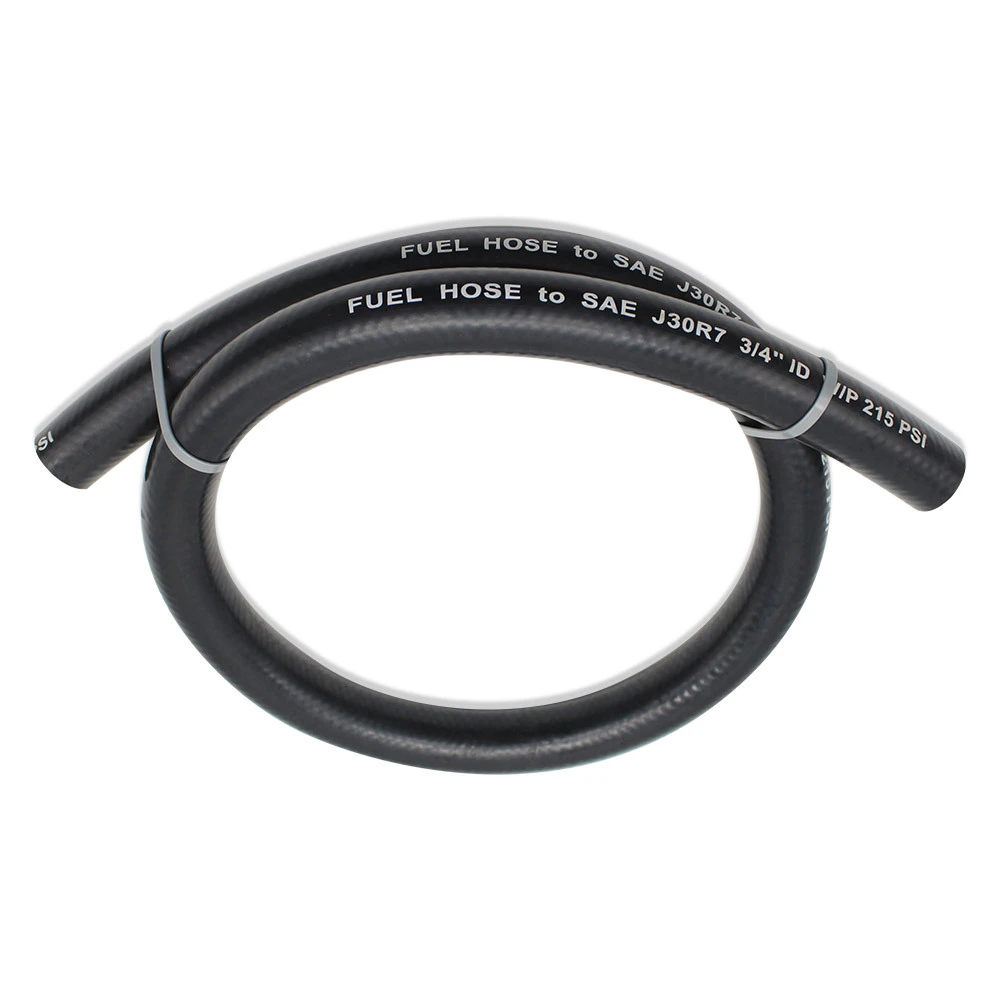

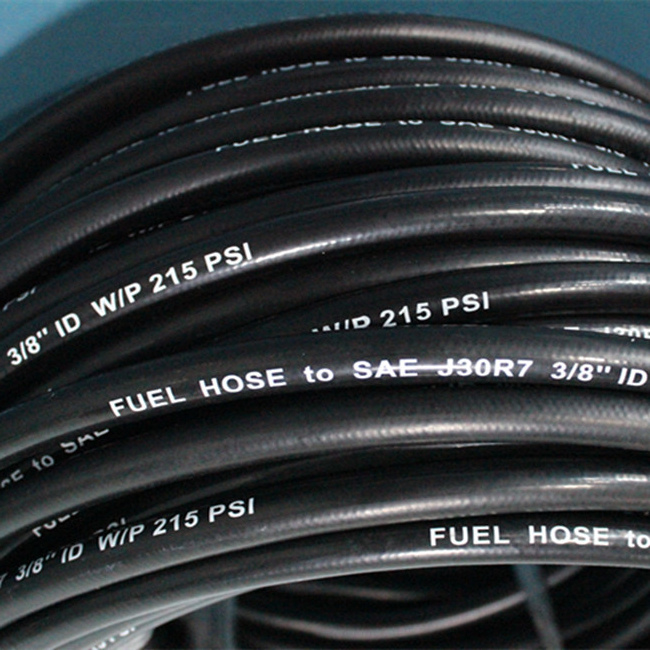

Paishun - Low Pressure High Permeation SAE 30R7 Spec Automotive Fuel Line Hose Gasoline Fuel Oil Hose

Low Pressure High Permeation SAE 30R7 Spec Automotive Fuel Line Hose is a hot seller well recognized by users around the world. After years of special research and development, the products developed successfully break through the bottleneck of the pain points. Thanks to the multiple characteristics that have been tested by our QC inspectors,Rubber hoses has a wide application in different fields mainly including Gasoline Fuel Oil Hose.We hold a firm belief that the broad application of the product will drive the industry to develop and advance rapidly.

Hose Description

Tube: NBR
Reinforcement: High tensile polyester fiber braided.
Cover: NBR-PVC blend rubber.

Temperature: -40ºC to +125ºC

Standard Color: Black

Application: For use with gasoline, diesel fuel, lubrication oil, or the vapor present in either the fuel system or in the
crankcase of internal combustion engines in mobile, stationary, and marine applications.

Standard: SAE J30 R7

Standard length: 30m, 100m.

NOTE: Do not use for pressure lines or fuel injected engines.

Specifications

Inner    Diameter			Outer  Diameter	Working Pressure	Burst Pressure	Length	Measurement	Weight
inch	mm	mm	psi	psi	m	cbm/roll	kg/m
3/16"	5	11.5	50	200	100	0.028	0.15
1/4"	6	13	50	200	100	0.031	0.17
5/16"	8	15	50	200	100	0.0353	0.216
3/8"	10	17	50	200	100	0.0442	0.24
1/2"	12.7	22	50	200	100	0.0756	0.428
5/8"	16	25	50	200	50	0.0329	0.40
3/4"	19	29	50	200	50	0.0572	0.60
1"	25	36	50	200	50	0.099	0.84

Certifications

TUV Certificate

RoHS

ISO Certificate

CE Certificate

MSHA Certificate 1

MSHA Certificate 2

Paishun has various types of certificates, such as ISO, CE, Rohs, MSHA, etc.
