Paishun - SAE J1402 Automotive Rubber Air Brake Hose 3/8" Inch and 1/2" Inch Air Fluid Hose Assembly
Hangzhou Paishun Rubber & Plastic Co., Ltd has made immense progress in the development of roducts. SAE J1402 Automotive Rubber Air Brake Hose 3/8" Inch and 1/2" Inch is the product of our company made by the state-of-the-art technologies. Hangzhou Paishun Rubber & Plastic Co., Ltd can make your SAE J1402 Automotive Rubber Air Brake Hose 3/8" Inch and 1/2" Inch famous and visible in the eyes of your target buyers and get a great response from them. Hangzhou Paishun Rubber & Plastic Co., Ltd have long desired to become one of the most influential enterprises in the industry. At present, we are busy improving our capabilities in product manufacturing, and gathering talents especially technical talents to develop our own core technologies.
| Place of Origin: | Zhejiang, China | Brand Name: | PASSION |
| Model Number: | 3/8" Inch and 1/2" Inch | Processing Service: | Cutting |
| Size: | 3/8" Inch, 1/2"Inch | Inner Diameter: | 9.5mm,12.7mm |
| Outer Diameter: | 19mm,22mm | Certification: | CE |
| Inner tube&Cover: | EPDM | Standard Length: | 50m, 100m |
| Hose Surface: | Smooth surface | Reinforcement: | High Tensile Polyester Fiber Braided |
| Color: | Black, Red, Yellow, Blue, Green, Orange,etc | Standard: | SAEJ1402 |

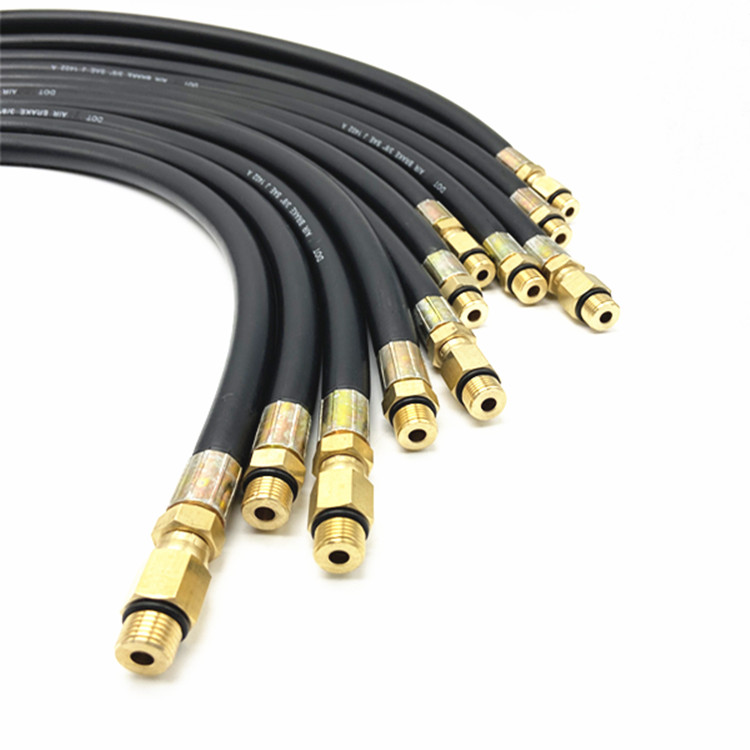

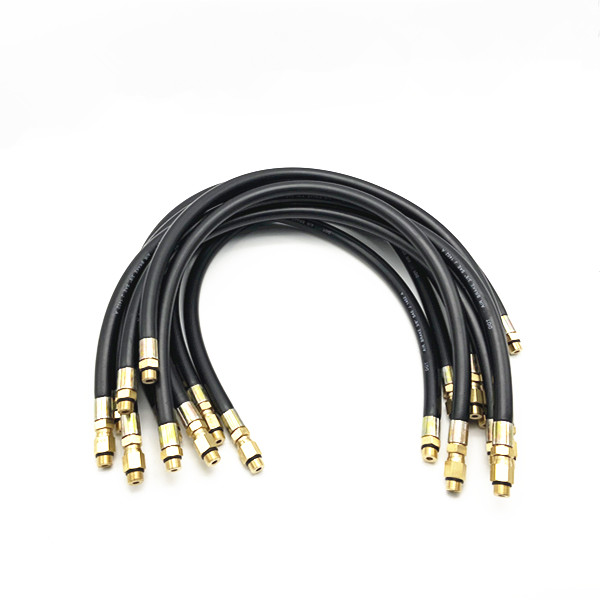

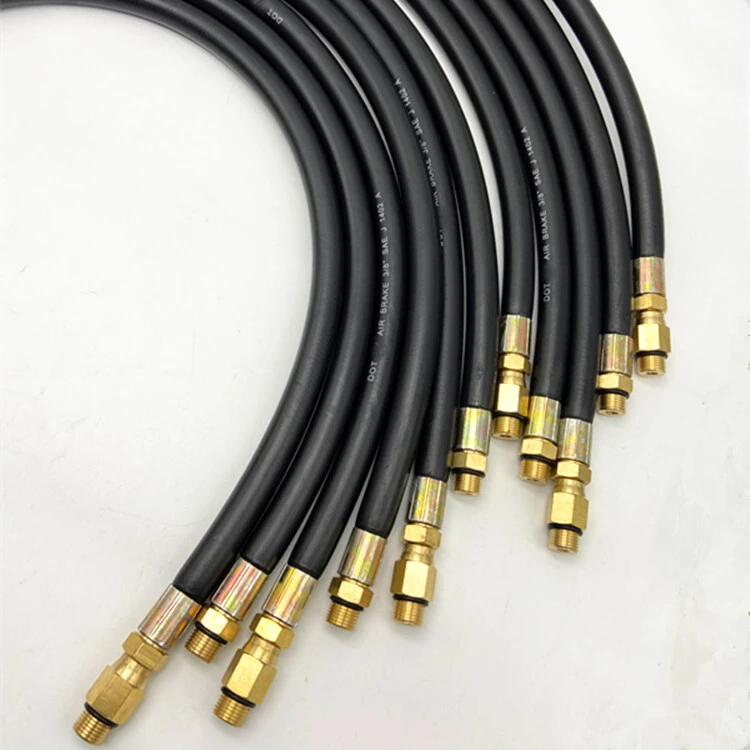

SAE J1402 Automotive Rubber Air Brake Hose 3/8" Inch and 1/2" Inch
Rubber Air Brake Hose (mill finish)
Applicable standard: SAE J1402-2006, GB7128-86
Structure: Inner Tube: EPDM
Reinforcement: High tensile polyester fiber braided.
Cover: EPDM
Color: Black, Red, Yellow, Blue, Green, Orange, etc.
Bend radius:10 times of proper diameter dimension
Application: Mainly used for vehicle air brake system. The application includes the flexible connection between frame and axle, tractor and trailer and between trailers, as well as unprotected air circuit with air pressure coming to 1.0 MPa when the air circuit is possibly to be dragged or bumped.
Applicable temperature: -40℃ - +100℃
Standard length: 50m, 100m.
Specification:
|
Item code |
Inner Diameter |
Outer Diameter |
Working Pressure |
Burst Pressure |
Length |
Measurement |
Weight |
|||
|
inch |
mm |
mm |
bar |
psi |
bar |
psi |
m |
cbm/roll |
kg/m |
|
|
HPR1 |
3/8" |
9.5 |
19 |
15 |
225 |
62 |
900 |
100 |
0.05 |
0.34 |
|
HPR2 |
1/2" |
12.7 |
22 |
15 |
225 |
62 |
900 |
100 |
0.08 |
0.48 |
https://imgbd.weyesimg.com/prod/moving/img/13c7898138e03495de4a17da1c714d8b/ebb8a005cc94ecfd31f573717c4dfc28.jpg" data-alt="SAE J1402 Automotive Rubber Air Brake Hose 3/8" Inch and 1/2" Inch" ori-width="750" ori-height="750" />
P
Packaging: Well packed by transparent OPP film or according to your requirement.
Shipping: We ship the goods by express, by air, by sea or according to your requirement.
Lead time: according to your quantity, generally speaking, 35 days 20' container.
