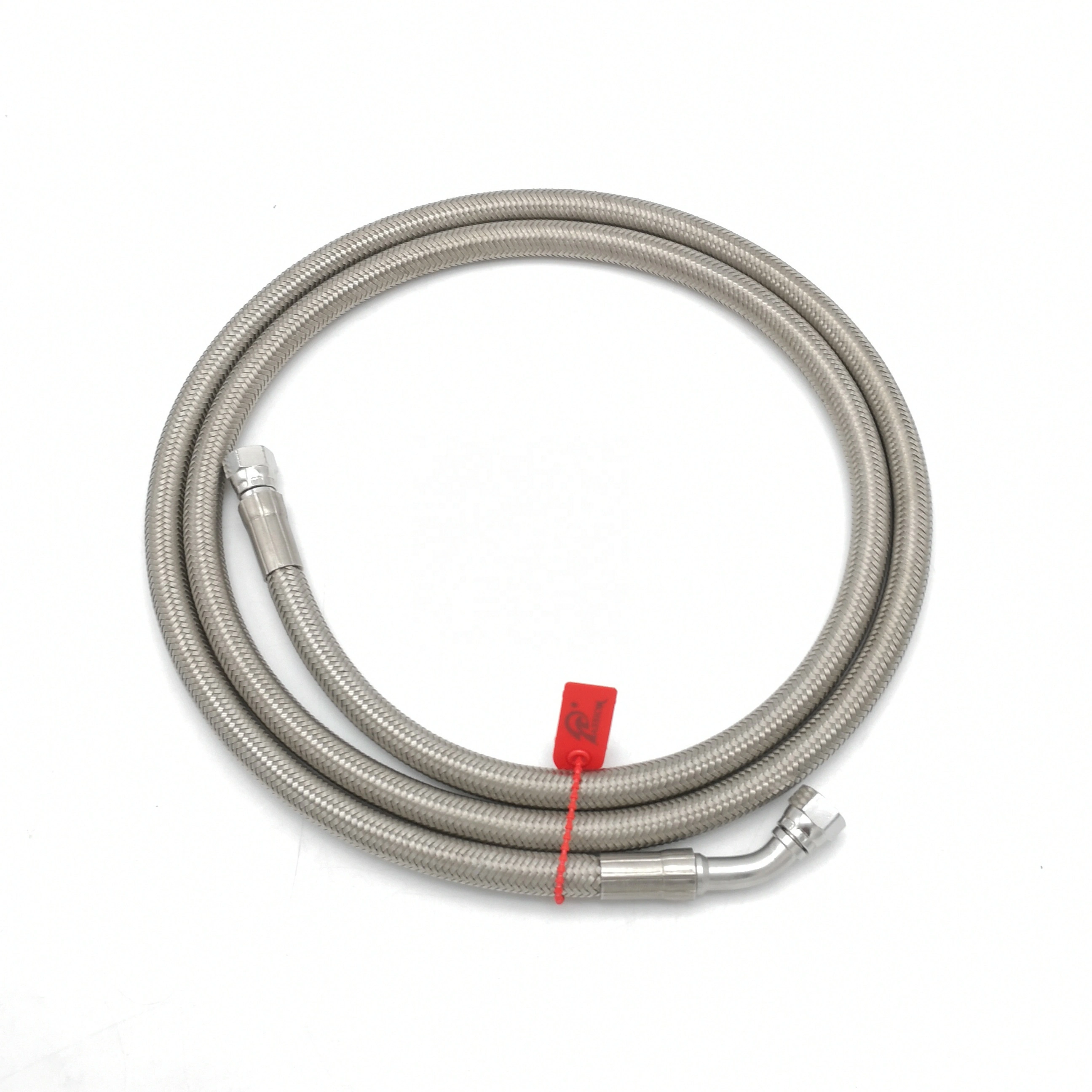

Paishun - 1/2 JIC Stainless Steel Wire Braided PTFE Clear Braid Hose for Steam PTFE Hose Assembly 1

Paishun - 1/2 JIC Stainless Steel Wire Braided PTFE Clear Braid Hose for Steam PTFE Hose Assembly 2

Paishun - 1/2 JIC Stainless Steel Wire Braided PTFE Clear Braid Hose for Steam PTFE Hose Assembly 3

Paishun - 1/2 JIC Stainless Steel Wire Braided PTFE Clear Braid Hose for Steam PTFE Hose Assembly 4

Paishun - 1/2 JIC Stainless Steel Wire Braided PTFE Clear Braid Hose for Steam PTFE Hose Assembly 5

Paishun - 1/2 JIC Stainless Steel Wire Braided PTFE Clear Braid Hose for Steam PTFE Hose Assembly 6

Paishun - 1/2 JIC Stainless Steel Wire Braided PTFE Clear Braid Hose for Steam PTFE Hose Assembly 7

Paishun - 1/2" JIC Stainless Steel Wire Braided PTFE Clear Braid Hose for Steam PTFE Hose Assembly

Name: Paishun - 1/2" JIC Stainless Steel Wire Braided PTFE Clear Braid Hose for Steam PTFE Hose Assembly
Uploaded: 2025-12-17T10:08:52+08:00
Description: Since established, we have been emphasizing the importance of technology in product manufacturing. It has been proved that the utilization of high-end technologies has speeded up the manufacturing process and guaranteed 1/2" JIC Stainless Steel Wire Braided PTFE Clear Braid Hose for Steam performance.At present, the product is commonly used in the field(s) of Plastic Tubes.

Since established, we have been emphasizing the importance of technology in product manufacturing. It has been proved that the utilization of high-end technologies has speeded up the manufacturing process and guaranteed 1/2" JIC Stainless Steel Wire Braided PTFE Clear Braid Hose for Steam performance.At present, the product is commonly used in the field(s) of Plastic Tubes.

Customization:

Customized logo (Min. Order: 500 Meters),Graphic customization (Min. Order: 500 Meters),Customized packaging (Min. Order: 500 Meters)

shipping:

Support Sea freight · Land freight

Inquiry

Write a Review

Required Products

Total price discount:

BUY TOGETHER

Inquiry together

Hangzhou Paishun Rubber & Plastic Co., Ltd relying on years of development, it clearly understands the needs of users and the pain points of the industry, and relying on strong technical capabilities to develop high-quality 1/2" JIC Stainless Steel Wire Braided PTFE Clear Braid Hose for Steam that can meet the needs of users and solve the pain points of the industry. Continuous innovation ability is the fundamental guarantee of product quality. In the future, Hangzhou Paishun Rubber & Plastic Co., Ltd will make full use of the wisdom of our talents and update our technologies to keep up with the trends, to make our dream of being a world-famous company come true.

Place of Origin:	Zhejiang, China	Brand Name:	PAISHUN
Model Number:	SAE100 R14	Material:	PTFE
Specification:	3/8" I.D.	Length:	2 meter
Thickness:	0.65mm	Standard:	SAE 100R14
Processing Service:	extrusion and braid	Style:	ptfe convoluted hose
Size:	1/4" to 2"	Temperature:	-65C to +260C
Connection:	JIC female thread

Why Choose PTFE

Paishun - 1/2 JIC Stainless Steel Wire Braided PTFE Clear Braid Hose for Steam PTFE Hose Assembly 8

Character of PTFE

The PTFE hose material is made of Japanese Daikin.

The temperature range is -200C to +260C, melting point: 327C. It can't be injection molded and can be pressed and formed. The max. operating temperature is 280C.

PTFE has the following excellent properties due to its strong carbon-fluorine bond and high molecular wieght:

1. Excellent weather resistance, long service life, no brittle fracture and no aging.

2. Resistant to strong acid and alkali, resistant to various corrosive chemicals.

3. Anti-adhesive, anti-moisture and ultraviolet, non-toxic.

4. With a very low friction coefficuent. non-flammable.

5. With very low evaporate transpiration rate, cold liquid is not volatile.

6. With excellent electrical charateristics (does not change with frequency and temperature changes)

7. Excellent mechanical properties, shock resistance and flexibility.

Product Overview

Paishun - 1/2 JIC Stainless Steel Wire Braided PTFE Clear Braid Hose for Steam PTFE Hose Assembly 9

Inner tube: corrugated PTFE

Outer tube: stainless steel 304 wire braided Temperature range: -65℃ to +260℃

Advantage:

high temperature resistance, corrsion resistance, excellent flexibility and resistance to distortion

No	Specification	I.D.	O.D.	Thickness	W.P.	B.P	Min. Bending Radius
No	Specification			mm	mm	mm	bar	bar	mm
1	1/4	6.4	11.5	0.8	150	400	20
2	5/16	8	12.3	0.65	130	365	25
3	3/8	10	14.2	0.65	125	350	33
4	1/2	13	17.2	0.85	110	330	42
5	5/8	16	21.6	0.9	80	245	50
6	3/4	19	25.3	1	70	215	63
7	1	25	31	1	50	150	79
8	1 1/4	32	39	1.1	45	140	125
9	1 1/2	38	45	1.45	43	120	145
10	2	50	60	1.5	35	100	180

PTFE Hose Assembly

We can crimp the hose assembly in our factory.

Ferrule: 00TF0

Fitting: According to customers' request. Most of them use JIC Female thread.

Material 1: carbon steel with zinc plated

Material 2: carbon steel with nickel alloy plated

Material 3: SS304 / SS316

Paishun - 1/2 JIC Stainless Steel Wire Braided PTFE Clear Braid Hose for Steam PTFE Hose Assembly 12

Paishun - 1/2 JIC Stainless Steel Wire Braided PTFE Clear Braid Hose for Steam PTFE Hose Assembly 13

Application

High temperature hydraulic, pneumatic and chemical delivery hoses for rubber, automotive, machine tools, shipbuilding, electromechanical, diesel, pressure control, paper and printing industries. For liqids, gases and highly corrosive media with laternating hot and cold heat, it has better performance and longevity than other hoses.

-Flamethrower

-Air Compressor

Paishun - 1/2 JIC Stainless Steel Wire Braided PTFE Clear Braid Hose for Steam PTFE Hose Assembly 14

Paishun - 1/2 JIC Stainless Steel Wire Braided PTFE Clear Braid Hose for Steam PTFE Hose Assembly 15

Paishun - 1/2 JIC Stainless Steel Wire Braided PTFE Clear Braid Hose for Steam PTFE Hose Assembly 16

Packing&Shipping

Packing 1: PE bag with headcard for short hose assembly

Packing 2: by rolls with poly stripes

Paishun - 1/2 JIC Stainless Steel Wire Braided PTFE Clear Braid Hose for Steam PTFE Hose Assembly 17

Paishun - 1/2 JIC Stainless Steel Wire Braided PTFE Clear Braid Hose for Steam PTFE Hose Assembly 18

Paishun Can quote you EXW, FOB, CNF, CIF, DDU price based on the experienced shipment team.

Paishun - 1/2 JIC Stainless Steel Wire Braided PTFE Clear Braid Hose for Steam PTFE Hose Assembly 19

If you need the goods urgently, ship
by express is a good way. Paishun cooperates with over 5 express agents, who can get discounts from DHL, FedEx, UPS, TNT or some
special line to your door. Express cost is much lower than regular charges. Goods can be sent to your door dicrectly.

Paishun - 1/2 JIC Stainless Steel Wire Braided PTFE Clear Braid Hose for Steam PTFE Hose Assembly 20

If your goods is not small, and also want to get the goods quickly. A good way is to ship by air. Paishun can ship the goods from
air port in Hangzhou or Shanghai, etc.Goods can be sent to the nearest air port of your city.

Paishun - 1/2 JIC Stainless Steel Wire Braided PTFE Clear Braid Hose for Steam PTFE Hose Assembly 21

If you don't need the goods in a hurry, a good way is to ship by sea. Shipment cost is much lower. Paishun can ship from Ningbo Port, Shanghai Port, Lianyungang Port or other ports as your request. Goods can be sent to the nearest sea port of your city.
