A hose manufacturer with over two decades of experience.

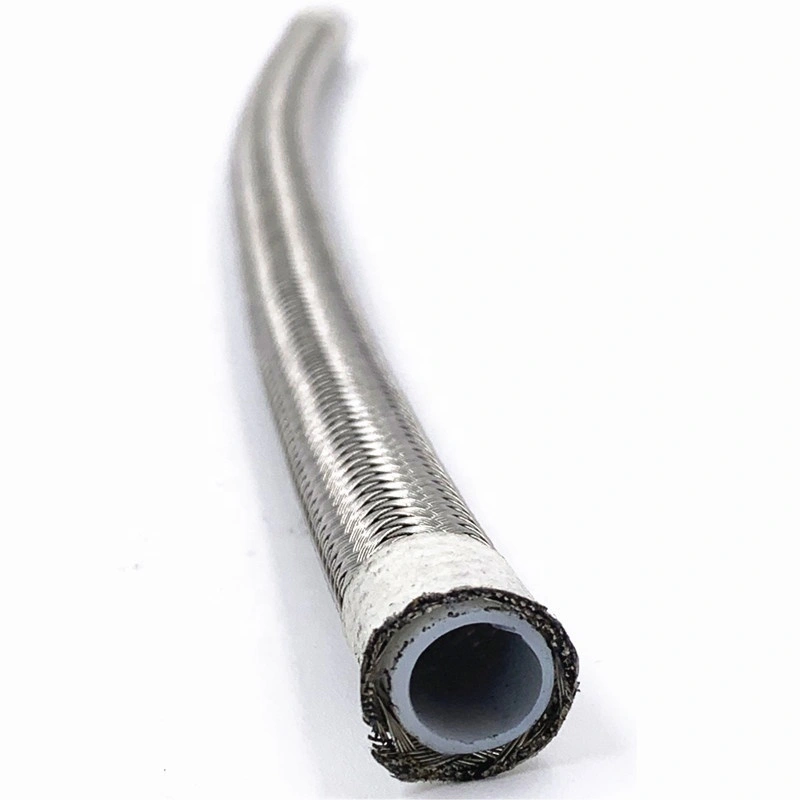

Paishun - High Temperature 6mm Flexible Stainless Steel Braided PTFE Hose for Oil SS PTFE Smooth Hose 1

Paishun - High Temperature 6mm Flexible Stainless Steel Braided PTFE Hose for Oil SS PTFE Smooth Hose 2

Paishun - High Temperature 6mm Flexible Stainless Steel Braided PTFE Hose for Oil SS PTFE Smooth Hose 3

Paishun - High Temperature 6mm Flexible Stainless Steel Braided PTFE Hose for Oil SS PTFE Smooth Hose 4

Paishun - High Temperature 6mm Flexible Stainless Steel Braided PTFE Hose for Oil SS PTFE Smooth Hose 5

Paishun - High Temperature 6mm Flexible Stainless Steel Braided PTFE Hose for Oil SS PTFE Smooth Hose 6

Paishun - High Temperature 6mm Flexible Stainless Steel Braided PTFE Hose for Oil SS PTFE Smooth Hose 7

Paishun - High Temperature 6mm Flexible Stainless Steel Braided PTFE Hose for Oil SS PTFE Smooth Hose

Name: Paishun - High Temperature 6mm Flexible Stainless Steel Braided PTFE Hose for Oil SS PTFE Smooth Hose
Uploaded: 2025-12-17T10:15:16+08:00
Description: You can find every Plastic Tubes of all types now. Buyers who are looking for High Temperature 6mm Flexible Stainless Steel Braided PTFE Hose for Oil of the best quality can reach everything that they need.Paishun make sure that all the buyers in the world are reaching the sellers who are offering them top of the line quality of the product.

You can find every Plastic Tubes of all types now. Buyers who are looking for High Temperature 6mm Flexible Stainless Steel Braided PTFE Hose for Oil of the best quality can reach everything that they need.Paishun make sure that all the buyers in the world are reaching the sellers who are offering them top of the line quality of the product.

Customization:

Customized logo (Min. Order: 50 Meters),Customized packaging (Min. Order: 50 Meters),Graphic customization (Min. Order: 50 Meters),Hose assembly (Min. Order: 50 Meters)

shipping:

Support Sea freight · Land freight

Inquiry

Write a Review

Required Products

Total price discount:

BUY TOGETHER

Inquiry together

Hangzhou Paishun Rubber & Plastic Co., Ltd grasp the new market trends, insight into the actual needs of customers, relying on advanced production technology and accurate market positioning, successfully launched High Temperature 6mm Flexible Stainless Steel Braided PTFE Hose for Oil. The reason why products are loved by the market is the emphasis on high-tech research and development. Next,Hangzhou Paishun Rubber & Plastic Co., Ltd will introduce more outstanding talents, invest more research and development funds, and improve market competitiveness.

Place of Origin:	Zhejiang, China	Brand Name:	PASSION
Model Number:	P06-R14	Material:	PTFE
Specification:	1/4''	Length:	Random Length
Thickness:	1.7mm	Standard:	SAE 100R14
Processing Service:	Cutting, Hose Crimping	Tube:	smooth seamless Virginal PTFE
Cover:	304 stainless steel	Inner Diameter:	6.4mm+/-0.3
Outer Diameter:	9.2mm+/-0.4	Min. Bend Radius:	81mm
Max. Working Pressure:	210 bar	Min. Burst Pressure:	653 bar
Max. Temperature:	260 C	Approx. Weight:	0.081kg/meter
Warranty:	1 year

Why Choose PTFE

Paishun - High Temperature 6mm Flexible Stainless Steel Braided PTFE Hose for Oil SS PTFE Smooth Hose 8

Character of PTFE

The PTFE hose material is made of Japanese Daikin.

The temperature range is -200C to +260C, melting point: 327C. It can't be injection molded and can be pressed and formed. The max. operating temperature is 280C.

PTFE has the following excellent properties due to its strong carbon-fluorine bond and high molecular wieght:

1. Excellent weather resistance, long service life, no brittle fracture and no aging.

2. Resistant to strong acid and alkali, resistant to various corrosive chemicals.

3. Anti-adhesive, anti-moisture and ultraviolet, non-toxic.

4. With a very low friction coefficuent. non-flammable.

5. With very low evaporate transpiration rate, cold liquid is not volatile.

6. With excellent electrical charateristics (does not change with frequency and temperature changes)

7. Excellent mechanical properties, shock resistance and flexibility.

Product Overview

Paishun - High Temperature 6mm Flexible Stainless Steel Braided PTFE Hose for Oil SS PTFE Smooth Hose 9

Inner tube: PTFE

Outer tube: stainless steel 304 wire braided Temperature range: -65℃ to +260℃

Advantage:

Because of its high temperature resistance, low temperature resistance, corrosion resistance high lubricating property, inadhesion, toxicity and electrical insulation it is widely used in mechanical, electrical applicances, automotive, aerospace,, chemical, pharmaceutical, communication and other fields.

No	Specification	I.D.	O.D.	Thickness	W.P.	B.P	Min. Bending Radius
No	Specification			mm	mm	mm	bar	bar	mm
1	1/8	3.5	6.6	1	320	988	51
2	3/16	4.8	7.6	0.85	242	726	75
3	1/4	6.4	9.2	0.85	210	653	81
4	5/16	8	11	0.85	188	587	92
5	3/8	9.7	12.8	0.85	185	556	131
6	1/2	12.7	15.9	1	106	461	182
7	5/8	16	19.2	1	90	382	211
8	3/4	19	22.7	1.2	78	269	338
9	7/8	22.2	26	1.2	60	195	421
10	1	25	29.3	1.5	40	153	539
11	2	50	55.6	2	30	120	1015

Paishun - High Temperature 6mm Flexible Stainless Steel Braided PTFE Hose for Oil SS PTFE Smooth Hose 10

Paishun - High Temperature 6mm Flexible Stainless Steel Braided PTFE Hose for Oil SS PTFE Smooth Hose 11

PTFE Hose Assembly

We can crimp the hose assembly in our factory.

Ferrule: 00TF0

Fitting: According to customers' request. Most of them use JIC Female thread.

Material 1: carbon steel with zinc plated

Material 2: carbon steel with nickel alloy plated

Material 3: SS304 / SS316

Paishun - High Temperature 6mm Flexible Stainless Steel Braided PTFE Hose for Oil SS PTFE Smooth Hose 12

Paishun - High Temperature 6mm Flexible Stainless Steel Braided PTFE Hose for Oil SS PTFE Smooth Hose 13

Application

Because of wide using temeprature range, it can be used for food processing, high temperature fluid, chemicals and compressed gas, like

-Flamethrower

-Air Compressor

Paishun - High Temperature 6mm Flexible Stainless Steel Braided PTFE Hose for Oil SS PTFE Smooth Hose 14

Paishun - High Temperature 6mm Flexible Stainless Steel Braided PTFE Hose for Oil SS PTFE Smooth Hose 15

Paishun - High Temperature 6mm Flexible Stainless Steel Braided PTFE Hose for Oil SS PTFE Smooth Hose 16

Packing&Shipping

Packing 1: PE bag with headcard for short hose assembly

Packing 2: by rolls with poly stripes

Paishun - High Temperature 6mm Flexible Stainless Steel Braided PTFE Hose for Oil SS PTFE Smooth Hose 17

Paishun - High Temperature 6mm Flexible Stainless Steel Braided PTFE Hose for Oil SS PTFE Smooth Hose 18

Paishun Can quote you EXW, FOB, CNF, CIF, DDU price based on the experienced shipment team.

Paishun - High Temperature 6mm Flexible Stainless Steel Braided PTFE Hose for Oil SS PTFE Smooth Hose 19

If you need the goods urgently, ship
by express is a good way. Paishun cooperates with over 5 express agents, who can get discounts from DHL, FedEx, UPS, TNT or some
special line to your door. Express cost is much lower than regular charges. Goods can be sent to your door dicrectly.

Paishun - High Temperature 6mm Flexible Stainless Steel Braided PTFE Hose for Oil SS PTFE Smooth Hose 20

If your goods is not small, and also want to get the goods quickly. A good way is to ship by air. Paishun can ship the goods from
air port in Hangzhou or Shanghai, etc.Goods can be sent to the nearest air port of your city.

Paishun - High Temperature 6mm Flexible Stainless Steel Braided PTFE Hose for Oil SS PTFE Smooth Hose 21

If you don't need the goods in a hurry, a good way is to ship by sea. Shipment cost is much lower. Paishun can ship from Ningbo Port, Shanghai Port, Lianyungang Port or other ports as your request. Goods can be sent to the nearest sea port of your city.
