Paishun - 1/4 Inch High Pressure CNG Hose 350 Bar for CNG Gas Dispenser Plastic Hose
With our fully equipped machines, we can produce 1/4 Inch High Pressure CNG Hose 350 Bar for CNG Gas Dispenser to your exact specifications. It has been proved that techniques can efficiently improve work efficiency and ensure product performance.It has extensive uses in the application field(s) of Plastic Tubes. In this technology-driven society, 2007 focus on improving R&D strength and keep developing new technologies so as to increase our competitiveness in the industry. We aim to become one of the leading enterprises in the market.
| Place of Origin: | Zhejiang, China | Brand Name: | PASSION |
| Model Number: | 1/4"" | Material: | PA |
| Specification: | 1/4" | Length: | 1meters, 1 rolls |
| Processing Service: | Moulding, Cutting, crimping | Color: | Red |

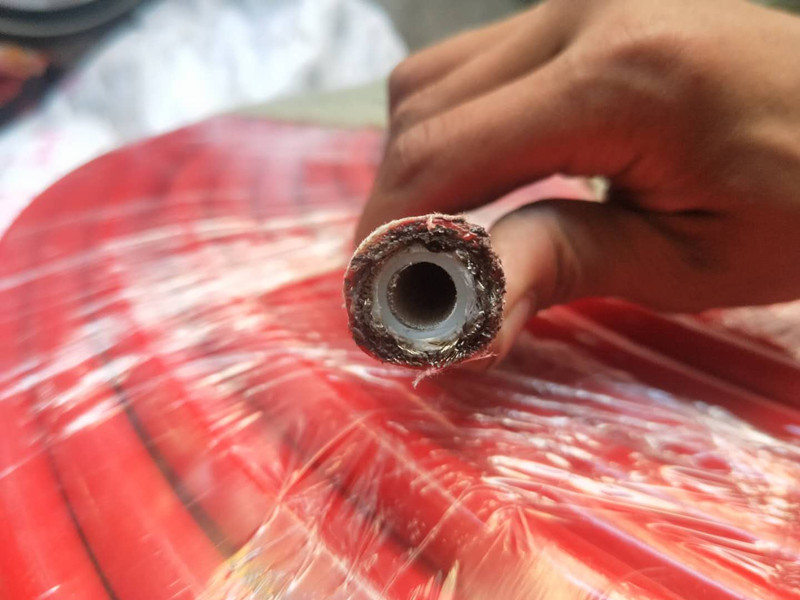

| Inner Tube: | Nylon (PA) | Reinforcement: | Steel Wire and Fibers |
| Outer Tube: | Polyurethan (PU) | Working Pressure: | 350bar |
| Inner Diameter: | 6.5mm | Outer Diameter: | 17.5mm |
| Min Bend Radius: | 90 mm | Operation Temperature: | -30℃ to 100℃ |
| Brand: | PASSION |
Nylon Material High Pressure Flexible CNG Hose 350 Bar for CNG Gas Dispensers
hose series (widely used in power steering systems of various buses and vehicles). Our company
studied and developed CNG special hose series relying on our own technical force in 2006. It is
being widely used in the connection pipeline system of loading and unloading between CNG
cylinder cars and pressure reduction station or parent stations.

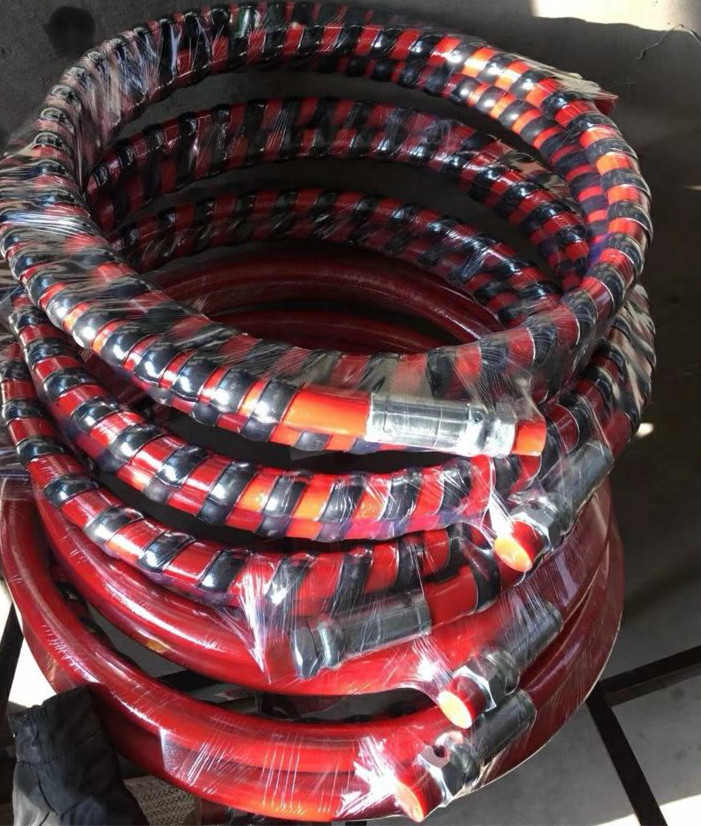

The product is easy to install and convenient to use. Special CNG hose assembly includes
different coupling means: ball valve, quick coupling and flange, so it is convenient to adjust the
distance of loading and unloading.
The product has strong pressure adaptability. Range of application: 1.0MPa-35Mpa, can meet the
needs of different customers.
Specifications | I.D. (inch) | O.D. (mm) | Service Pressure (mpa) | Min Bend Radius (mm) |
CNGG-8 | 5/16" | 17.5 | 35 | 90 |
CNGG-10 | 3/8" | 19 | 35 | 100 |
CNGG-13 | 1/2" | 25 | 35 | 150 |
CNGG-19 | 3/4" | 32 | 35 | 150 |
CNGG-25 | 1" | 38 | 35 | 300 |
TUV Certificate
RoHS
ISO Certificate
CE Certificate
MSHA Certificate 1
MSHA Certificate 2
