Paishun - SAE J2064 R134A Automotive Air Conditioning Hose A/C Hose
Hangzhou Paishun Rubber & Plastic Co., Ltd maintains stringent norms of quality to manufacture SAE J2064 R134A Automotive Air Conditioning Hose. SAE J2064 R134A Automotive Air Conditioning Hose is the result of high-end technologies.With the continual of enlarging of its application range in Rubber Hoses, its demands are increasing rapidly every year. In the future,Hangzhou Paishun Rubber & Plastic Co., Ltd will open up channels for introducing talents, and improve technological innovation capabilities by introducing more outstanding talents as intellectual support, so as to achieve better and faster development.
| Place of Origin: | Zhejiang, China | Brand Name: | Passion |
| Model Number: | A/C Refrigerant Hose 13/32" 10mm | Processing Service: | Cutting |
| Type: | A/C Refrigerant Hose 13/32" 10mm | Brand: | Passion A/C Refrigerant Hose 13/32" 10mm |
| Size: | 5/16"~7/8" | Inner Tube: | EPDM |
| Midllie Tube: | Nylon | Reinforcement: | PET or single braid polyester |
| Cover: | EPDM Synthetic Rubber | Temperature: | -30c~125c |
| Length: | 100m | W.P: | 15bar ~35bar |

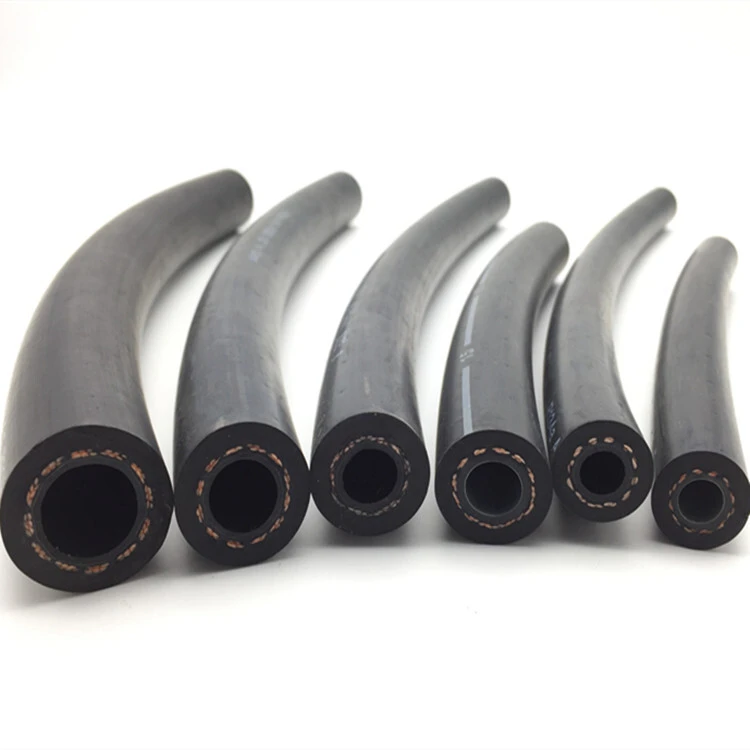

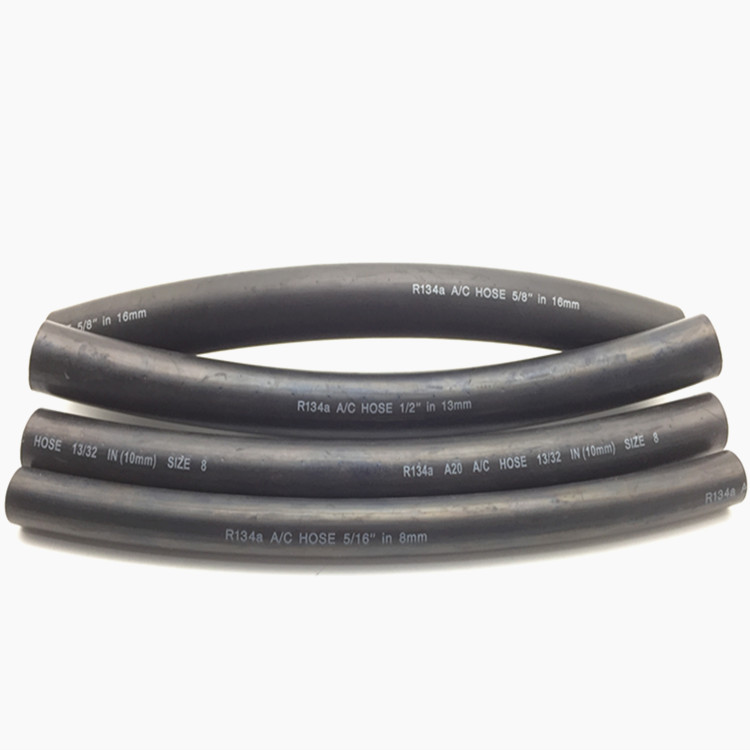

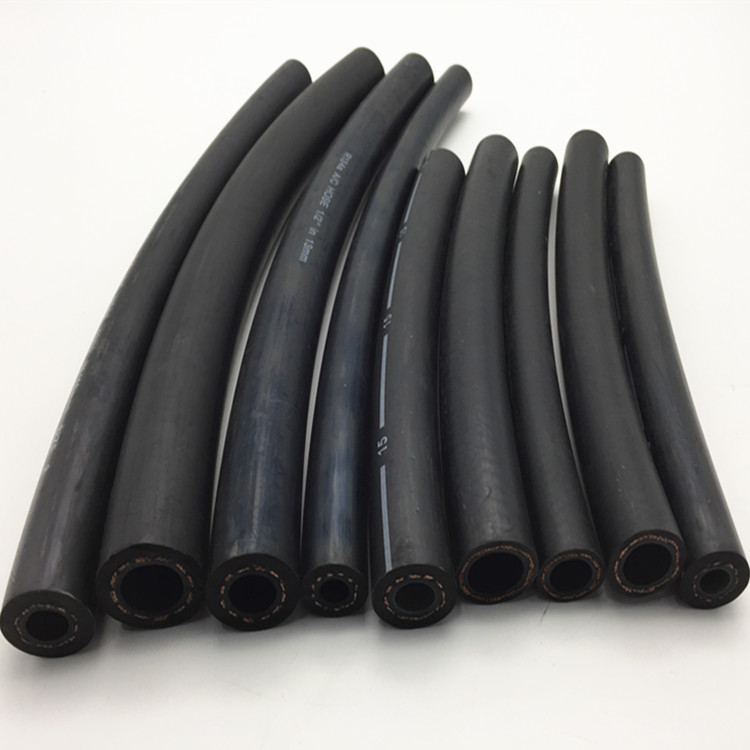

SAE J2064 R134A Automotive Air Conditioning Hose
Air Conditioning Hose (smooth surface)
Construction: Inner tube: Nylon, PA
Middle tube: IIR or EPDM synthetic rubber
Reinforcement: PET or single braid polyester
Cover: EPDM synthetic rubber
Temperature: -30℃~125℃
Color: Black
Application: Mainly used for conveying R12, R134a etc medium in automobile air-conditioning system like bus transit system.
Standard length: 100m
Specification:
|
Item Code |
Inner Diameter |
Outer Diameter |
Working Pressure |
Burst Pressure |
Length |
Measurement |
Weight |
|||
|
inch |
mm |
mm |
bar |
psi |
bar |
psi |
m |
cbm/roll |
kg/m |
|
|
5/16 |
8.2±0.4 |
15.2±0.5 |
35 |
500 |
280 |
4060 |
100 |
0.15 |
||
|
13/32 |
10.2±0.4 |
17.2±0.5 |
35 |
500 |
220 |
3139 |
100 |
0.17 |
||
|
7/16 |
11.2±0.4 |
18.4±0.5 |
35 |
500 |
230 |
3335 |
100 |
0.20 |
||
|
1/2 |
13.2±0.4 |
20.8±0.5 |
35 |
500 |
200 |
2900 |
100 |
0.23 |
||
|
5/8 |
15.5±0.4 |
23.8±0.5 |
20 |
290 |
180 |
2610 |
50 |
0.26 |
||
|
3/4 |
19.0±0.4 |
28.5±0.5 |
15 |
210 |
160 |
2320 |
50 |
0.37 |
||
|
7/8 |
22.0±0.4 |
33.0±0.5 |
15 |
210 |
120 |
1740 |
50 |
0.67 |
||
About Us:
High quality products, Low prices, Convenient payment procedure
We are a leading manufacturer specialized in designing and manufacturing various kinds of rubber hoses and hydraulic high pressure in China with experience more than 10 years, manufacturing in accordance ISO 9001: 2008, ISO / TS CE, 29001 and API Q1. We help our clients to develop special qualities and hydraulic rubber hose for their needs.

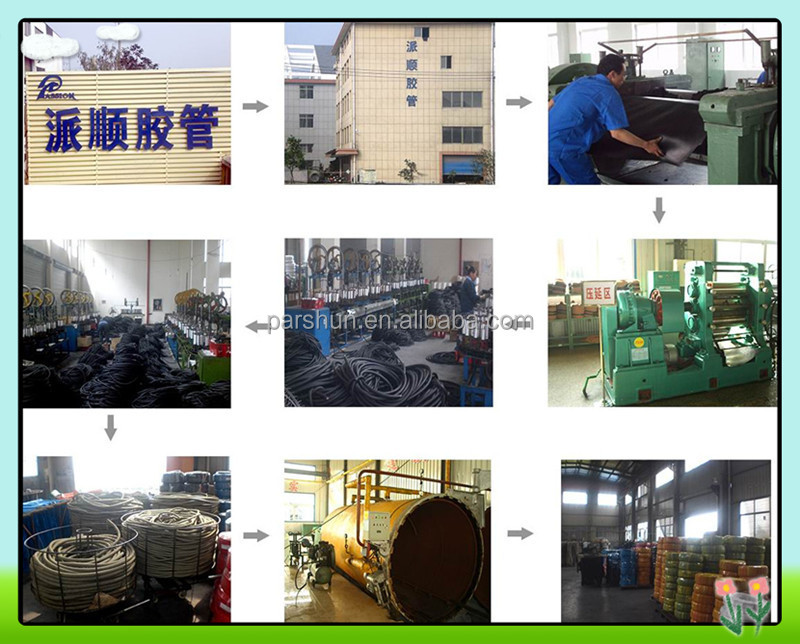

Factory of A/C Refrigerant Hose 13/32" 10mm:
Q1. Do you produce smooth or cloth wrapped cover?
A. Both, we can produce both cover, which depends on customer’s request.
Q2. Do you produce embossed marking?
A. Yes, we do provide embossed and printing markings with different color.
Q3. Can you produce product with my own brand?
A. Yes, we can offer OEM services.
Choosing us ------ choose the best
Get in touch with us
just leave your email or phone number in the contact form so we can send you a free quote for our wide range of designs
Passion Hose founded in 2007, a professional silicone hose manufacturer, a brand of pipeline hose and accessories R&D, production and sales. Main products: stainless steel shower hose,hydraulic hose, industrial hose, automotivehose, plumbing hose etc., which are widely used in home, hotel, industry and other fields.
