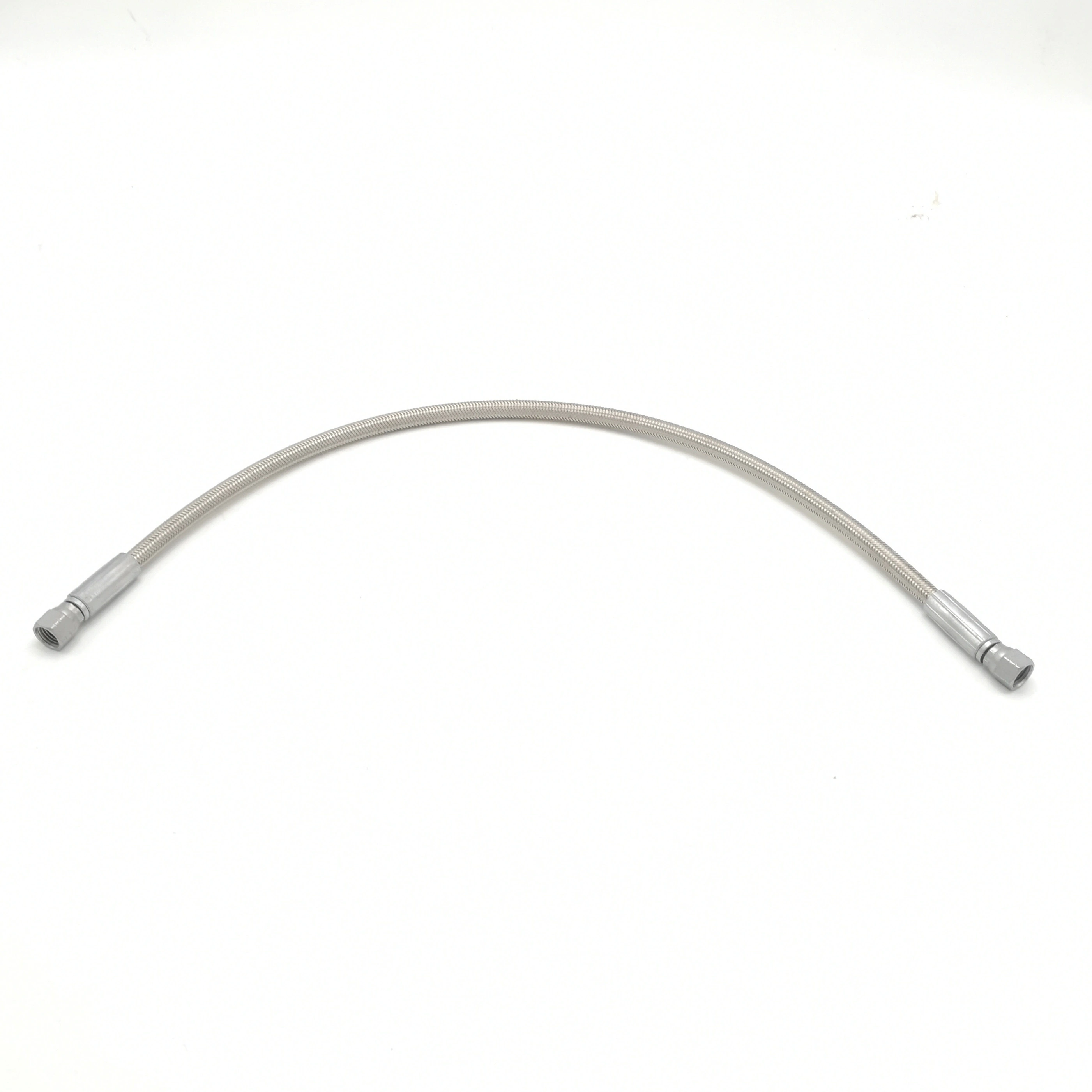

Paishun - 1/4" Flexible SAE 100R14 Hose PTFE With Stainless Steel Rubber Tube Hose Assembly PTFE Hose Assembly

Hangzhou Paishun Rubber & Plastic Co., Ltd grasp the new market trends, insight into the actual needs of customers, relying on advanced production technology and accurate market positioning, successfully launched 1/4" Flexible SAE 100R14 Hose PTFE With Stainless Steel Rubber Tube Hose Assembly. Auto Brake Hoses has passed a series of international quality assurance system and product safety certification . Having analyzed the industry dynamics and researched the market development, we ensure our Rubber hoses has advantages in both its appearance and performance. It is designed to be of a unique structure and look, making it highly attractive to potential customers. In addition, the features of our 1/4" Flexible SAE 100R14 Hose PTFE With Stainless Steel Rubber Tube Hose Assembly makes it more valuable.

Why Choose PTFE

Character of PTFE

The PTFE hose material is made of Japanese Daikin.

The temperature range is -200C to +260C, melting point: 327C. It can't be injection molded and can be pressed and formed. The max. operating temperature is 280C.

PTFE has the following excellent properties due to its strong carbon-fluorine bond and high molecular wieght:

1. Excellent weather resistance, long service life, no brittle fracture and no aging.

2. Resistant to strong acid and alkali, resistant to various corrosive chemicals.

3. Anti-adhesive, anti-moisture and ultraviolet, non-toxic.

4. With a very low friction coefficuent. non-flammable.

5. With very low evaporate transpiration rate, cold liquid is not volatile.

6. With excellent electrical charateristics (does not change with frequency and temperature changes)

7. Excellent mechanical properties, shock resistance and flexibility.

Product Overview

Inner tube: PTFE

Outer tube: stainless steel 304 wire braided Temperature range: -65℃ to +260℃

Advantage:

Because of its high temperature resistance, low temperature resistance, corrosion resistance high lubricating property, inadhesion, toxicity and electrical insulation it is widely used in mechanical, electrical applicances, automotive, aerospace,, chemical, pharmaceutical, communication and other fields.

No	Specification	I.D.	O.D.	Thickness	W.P.	B.P	Min. Bending Radius
				mm	mm	mm	bar	bar	mm
1	1/8	3.5	6.6	1	320	988	51
2	3/16	4.8	7.6	0.85	242	726	75
3	1/4	6.4	9.2	0.85	210	653	81
4	5/16	8	11	0.85	188	587	92
5	3/8	9.7	12.8	0.85	185	556	131
6	1/2	12.7	15.9	1	106	461	182
7	5/8	16	19.2	1	90	382	211
8	3/4	19	22.7	1.2	78	269	338
9	7/8	22.2	26	1.2	60	195	421
10	1	25	29.3	1.5	40	153	539
11	2	50	55.6	2	30	120	1015

PTFE Hose Assembly

We can crimp the hose assembly in our factory.

Ferrule: 00TF0

Fitting: According to customers' request. Most of them use JIC Female thread.

Material 1: carbon steel with zinc plated

Material 2: carbon steel with nickel alloy plated

Material 3: SS304 / SS316

Application

Because of wide using temeprature range, it can be used for food processing, high temperature fluid, chemicals and compressed gas, like

-Flamethrower

-Air Compressor

Packing&Shipping

Packing 1: PE bag with headcard for short hose assembly

Packing 2: by rolls with poly stripes

Paishun Can quote you EXW, FOB, CNF, CIF, DDU price based on the experienced shipment team.

If you need the goods urgently, ship
by express is a good way. Paishun cooperates with over 5 express agents, who can get discounts from DHL, FedEx, UPS, TNT or some
special line to your door. Express cost is much lower than regular charges. Goods can be sent to your door dicrectly.

If your goods is not small, and also want to get the goods quickly. A good way is to ship by air. Paishun can ship the goods from
air port in Hangzhou or Shanghai, etc.Goods can be sent to the nearest air port of your city.

If you don't need the goods in a hurry, a good way is to ship by sea. Shipment cost is much lower. Paishun can ship from Ningbo Port, Shanghai Port, Lianyungang Port or other ports as your request. Goods can be sent to the nearest sea port of your city.

The goods also can sent to your other suppliers in China to make full container, or send to your agents in Yiwu, Guangzhou, Suifenhe, etc.
