Everyone needs 1/8 Inch SAE J1401 DOT Hydraulic Brake Fluid Hose, and we can offer you the best quality product of the world. 1/8 Inch SAE J1401 DOT Hydraulic Brake Fluid Hose can bring greater value to customers and help customers gain a firm foothold in the complex market environment. Hangzhou Paishun Rubber & Plastic Co., Ltd have the aspiration to become a leading enterprise in the market. To achieve this goal, we will continually follow the market rules strictly and make bold changes and innovations to cater to market trends.
| OE NO.: | OEM | Size: | 1/8'' ID |
| Material: | EPDM / CR / NBR | Place of Origin: | Zhejiang, China |
| Brand Name: | PASSION | Type: | Brake Hose |
| Certification: | DOT | Car Make: | Universal Cars |
| Model Number: | 1/8'' | ID Size: | 3.2mm |
| OD Size: | 10.5mm | Thickness: | 3.65mm |
| Max. Expansion ML: | <1.08 at 6.9Mpa, <1.38 at 10.3Mpa | Min, Burst Pressure: | 49.03 Mpa> >49.03 Mpa |
| Standard: | SAEJ1401 / GB16897-1997 | Color: | Black with / without color strips |

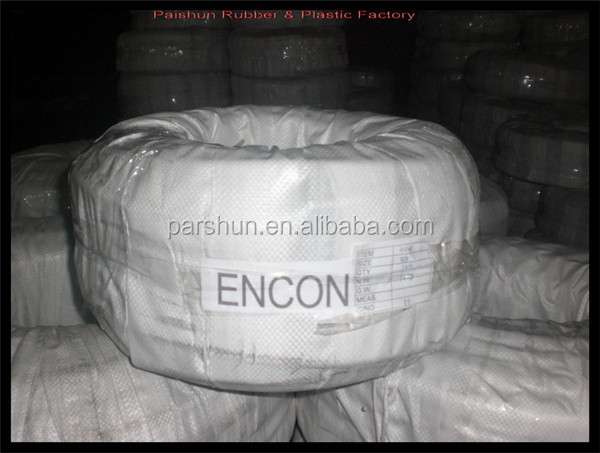

| Working Temperature range: | -40C to +100C | Packing: | woven bags |
| Coil length: | 50m or 100m |

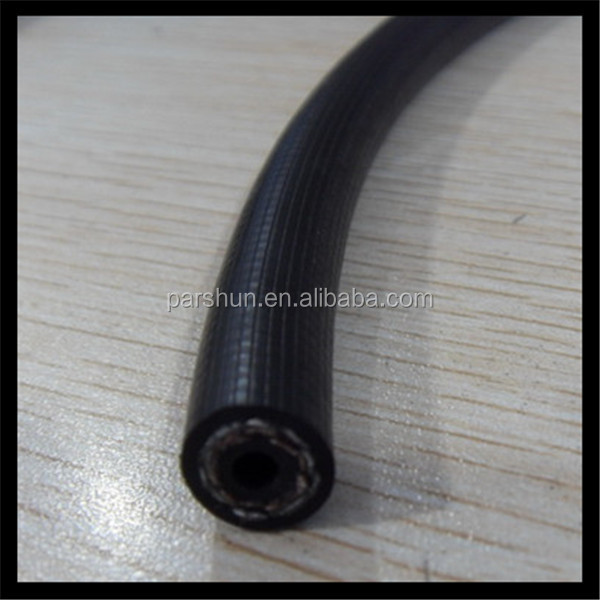

Hydraulic Brake Hose SAEJ1401

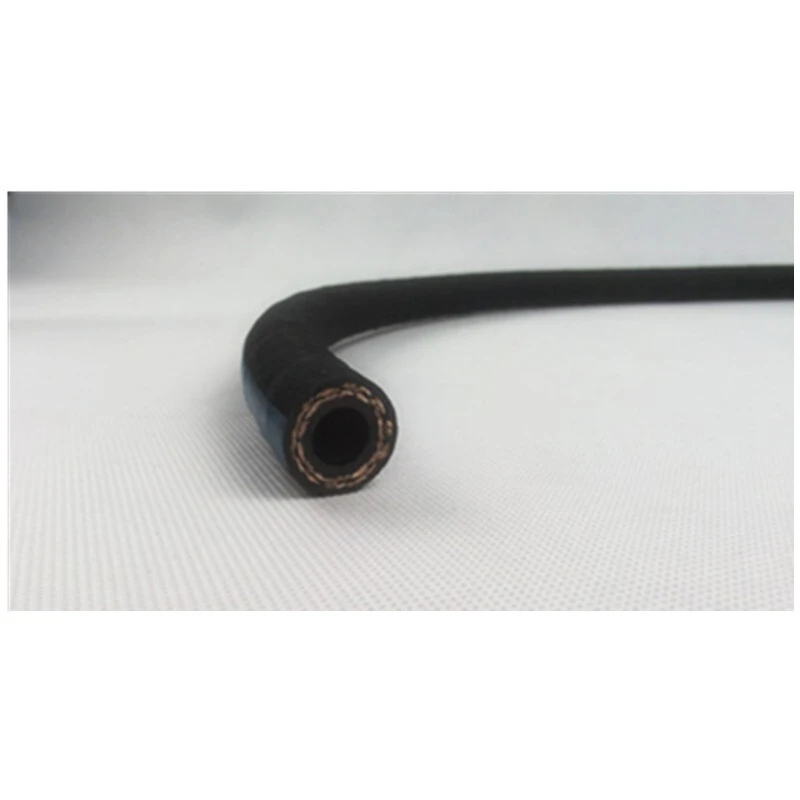

Structure: 1, Inner layer: NBR / EPDM
2, Intermediate reinforced layer: PVA / PET
3, Outer Layer: CR/ EPDM

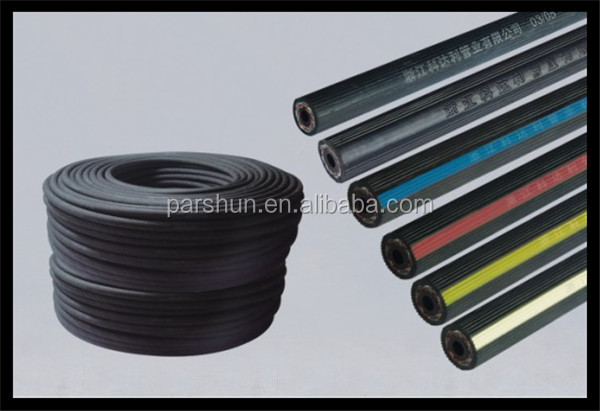

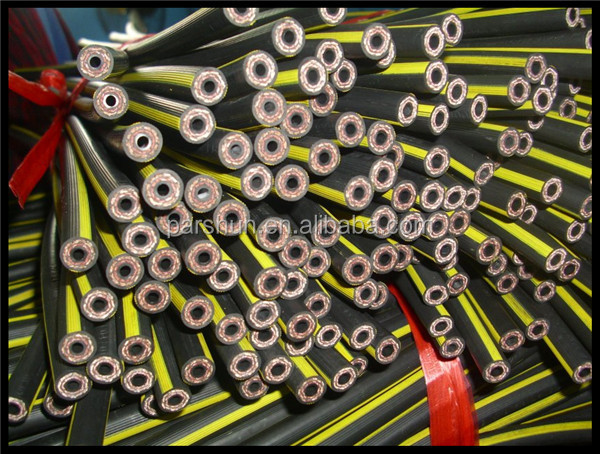

Appearance: Stripe Face
Standard: SAEJ1401
Working Temperature: -40C to +100C
Application: Used for automobile hydraulic brake hose system transfer pressure.
Property: high strength polyester thread weaving, flexibility, more content of explosion resistance, high tensile strength, low expansion.Hose ozone resistance, low temperature flexibility and high temperature resistant, good intermiscibility, excellent performance, braking effect is stable, safe and reliable.

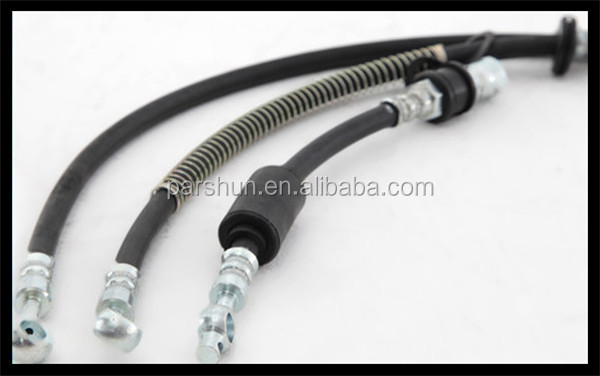

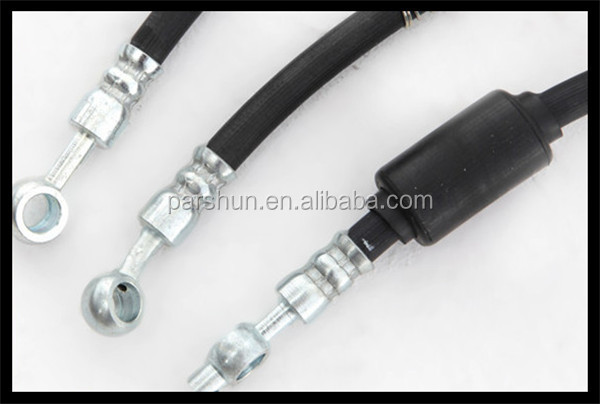

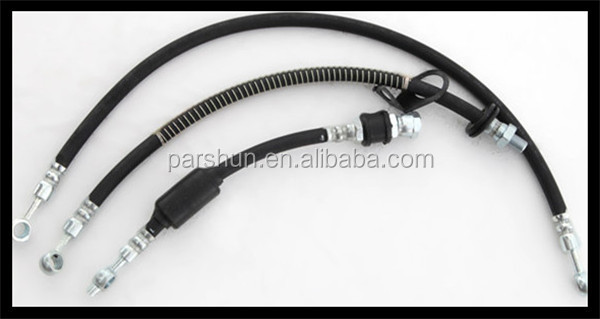

Hose Assembly can be supplied
| ID size(mm) OD size(mm) Wall (mm) Max. Expansion ml Min. Burst Pressure (Mpa) | |||||
| 3.2+-0.2 10.5+-0.3 3.65 <1.08 at 6.9mpa >49.03 | |||||
| 4.8+-0.2 13+-0.3 4.35 <1.81 at 6.9mpa >34.5 | |||||
| 6.3+-0.2 15+-0.3 3.75 <2.69 at 6.9mpa >34.5 |
1.Q:Are you a factory or trading company?
A:We are manufacturer
2.Q:Where is your factory located? How can I visit there?
A:Our factory is located in Hangzhou City, Zhejiang Province, China, about 1.5 hours train from Shanghai.
All our clients, from home or abroad, are warmly welcome to visit us!
3.Q:How can I get some samples?
A: We are honored to offer you samples.

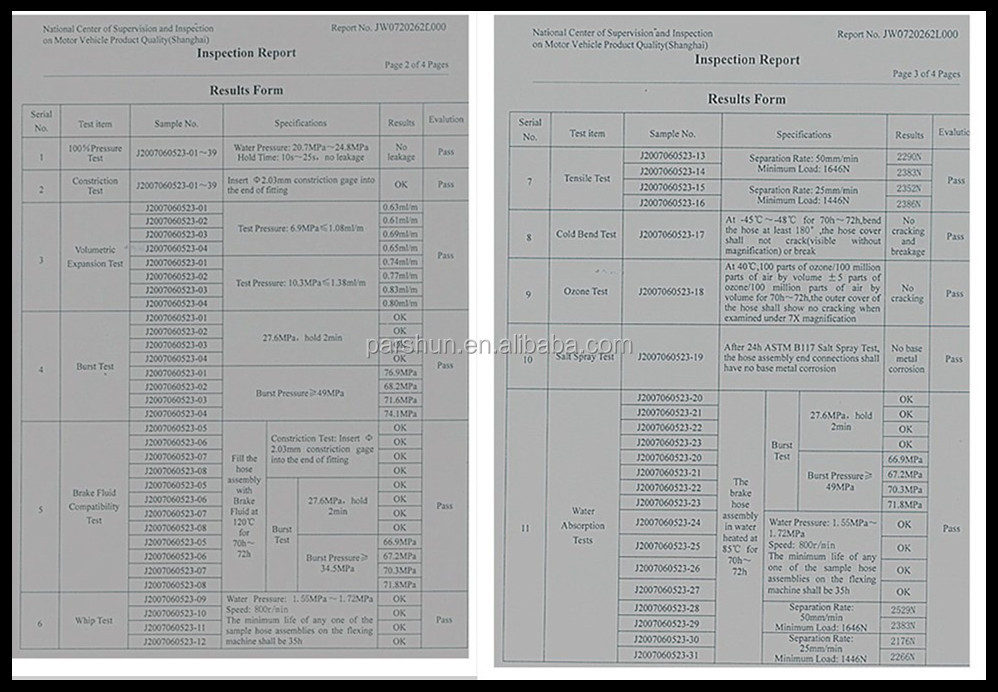

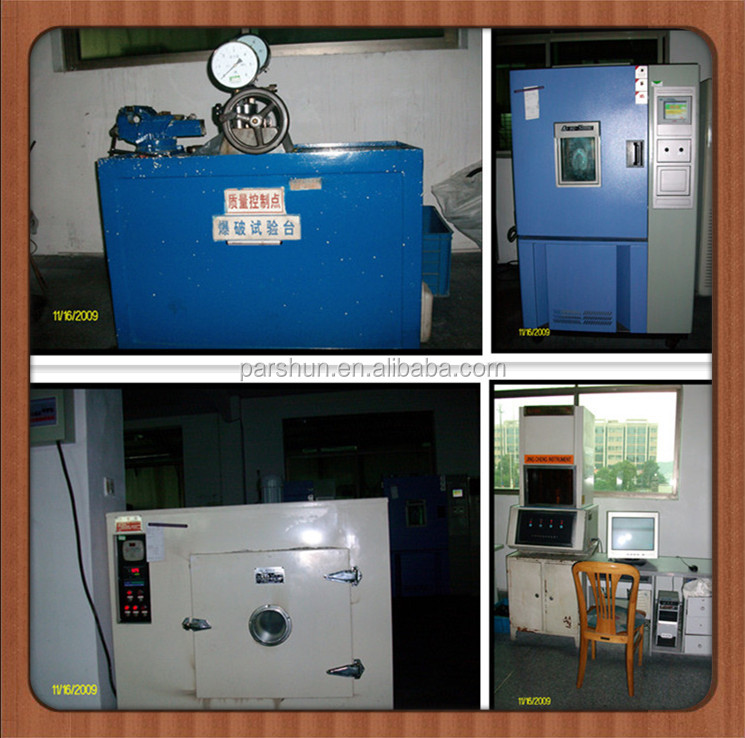

4.Q:How does your factory do regarding quality control?
A. Quality is priority. PASSION people always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained CE, ISO, SGS, TUV etc. Authentication.
