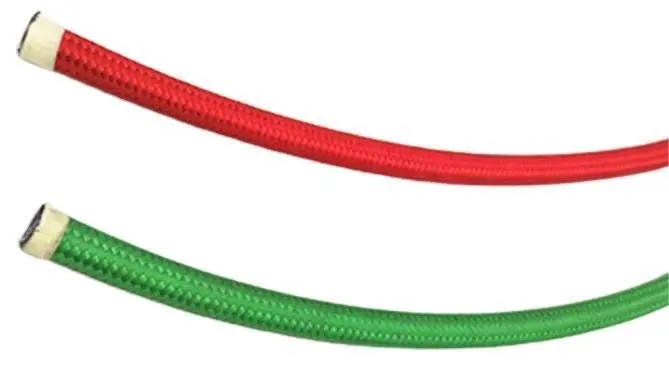

Nylon Covered AN6 SUS304 Braided PTFE Smooth Hose with Excellent Corrosion Resistance | PASSIONHOSE 1

Nylon Covered AN6 SUS304 Braided PTFE Smooth Hose with Excellent Corrosion Resistance | PASSIONHOSE 2

Nylon Covered AN6 SUS304 Braided PTFE Smooth Hose with Excellent Corrosion Resistance | PASSIONHOSE 3

Nylon Covered AN6 SUS304 Braided PTFE Smooth Hose with Excellent Corrosion Resistance | PASSIONHOSE 4

Nylon Covered AN6 SUS304 Braided PTFE Smooth Hose with Excellent Corrosion Resistance | PASSIONHOSE

Passionhose Best Nylon Covered PTFE Braided Hose Passion Stainless Steel Teflon Excellent High Temperature Resistance DN6 Supplier, Passionhose has the lead in product accuracy. The tolerance can be controlled +-0.1mm.

Construction:

Tube: Imported Daikin PTFE

Middle Layer: Stainless Steel wire braid (AISI STEEL 304)

Cover: Nylon Braided

Operating Temperature: -65C to 260ºC

Application: Mainly used for conveying various chemicals, medical, automobiles, Marine industry machinery hydraulic system etc

Coil length: 80m to 120m (Random Lengths).

Connector: Customize as per request

FEATURES

Excellent resistance to aging

Excellent ease of installation

The non-stick properties of PTFE prevents any debris from clogging the tube

Excellent pressure resistance ( impulse testing reach to 1,700,000 times)

Good air tightness

Key properties

Excellent chemical resistance

FDA approved

Flame resistant - UL94V0

No stick

Low friction

Very good dielectric insulation properties

Inquiry

Write a Review

Nylon Covered AN6 SUS304 Braided PTFE Smooth Hose with Excellent Corrosion Resistance | PASSIONHOSE 5

Product Features

---Why choose PTFE---

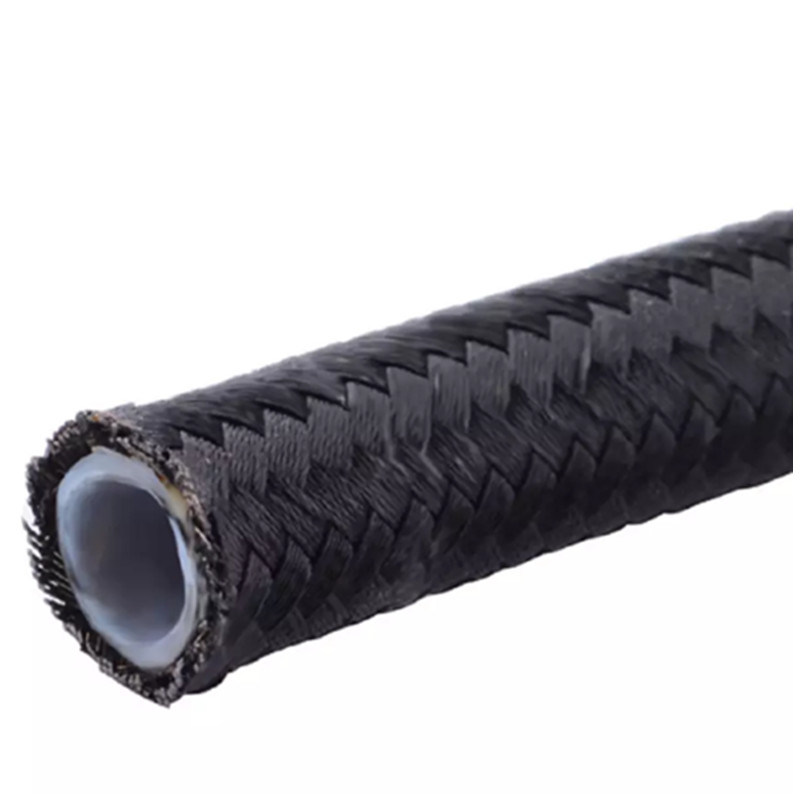

Nylon Covered AN6 SUS304 Braided PTFE Smooth Hose with Excellent Corrosion Resistance | PASSIONHOSE 6

PTFE Features

◪ Resistant to strong acid and alkali, resistant to various corrosive chemicals.
◪ Anti-adhesive, anti-moisture and ultraviolet, non-toxic.
◪ Excellent weather resistance, long service life, no brittle fracture and no aging.
◪ With a very low friction coefficient. non-flammable.
◪ With a very low evaporate transpiration rate, cold liquid is not volatile.
◪ With excellent electrical characteristics.
◪ Excellent mechanical properties, shock resistance and flexibility.

Product Description

---struction and specification---

Description

Structure:
Inner tube: smooth PTFE（The imported F-205 of Japan Daikin PTFE）
Middle Layer: 304 Stainless Steel Wire braided
Cover: Nylon Braided layer (Red, Black, Green etc)
Temperature:
Continuous temperature range: -65℃ to +260℃
Temporary temperature range: -70℃ to +300℃

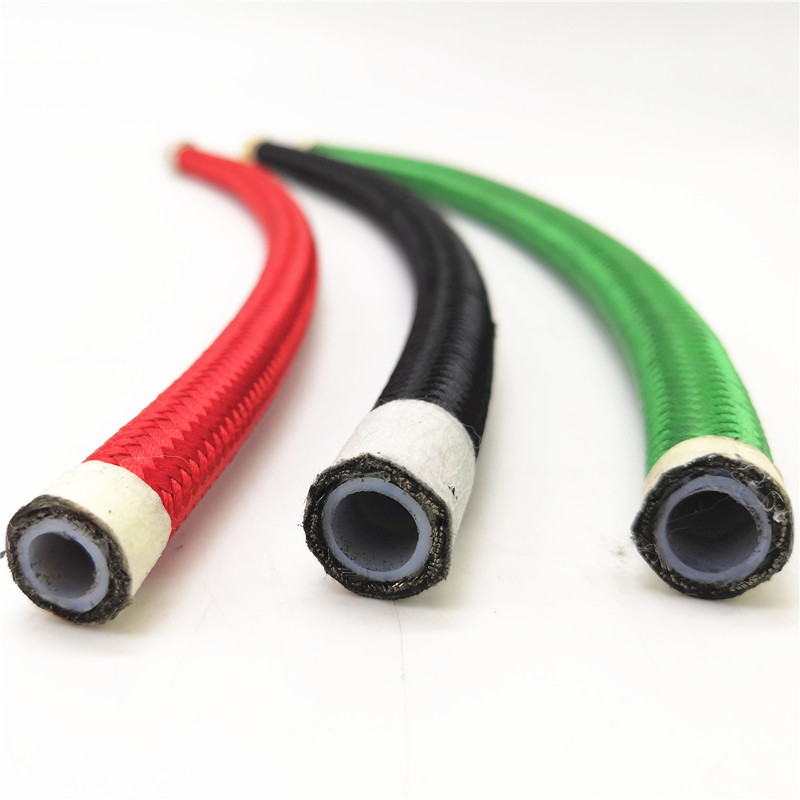

Nylon Covered AN6 SUS304 Braided PTFE Smooth Hose with Excellent Corrosion Resistance | PASSIONHOSE 8

Specification
Part No.	I.D. (inch)	I.D. (mm)	Tube Thickness (mm)	O.D. (mm)	W.P. (bar)	B.P. (bar)	Min. Bend Radius (mm)
1	1/8''	3.2	1	7.5	320	1080	45
2	3/16''	5.0	0.85	8.7	256	725	75
3	1/4"	6.5	0.85	10.3	210	680	81
4	5/16"	8.0	0.85	12.3	188	620	131
5	3/8"	10.0	0.85	14.2	185	540	182
6	1/2"	13.0	1	17.5	106	360	211
7	5/8"	16.3	1	20.5	80	250	252
6	3/4"	19.0	1.2	24.0	78	223	380
7	1"	25.4	1.5	30.5	40	195	485

Nylon Covered AN6 SUS304 Braided PTFE Smooth Hose with Excellent Corrosion Resistance | PASSIONHOSE 9

Product Details

---various PTFE hose assemblies---

Nylon Covered AN6 SUS304 Braided PTFE Smooth Hose with Excellent Corrosion Resistance | PASSIONHOSE 10

PTFE Hose Assembly

45 deg. JIC female hose end in SS304

Nylon Covered AN6 SUS304 Braided PTFE Smooth Hose with Excellent Corrosion Resistance | PASSIONHOSE 11

PTFE Hose Assembly

straight JIC female hose end in SS304

Nylon Covered AN6 SUS304 Braided PTFE Smooth Hose with Excellent Corrosion Resistance | PASSIONHOSE 12

PTFE Hose Assembly

2 meters

Nylon Covered AN6 SUS304 Braided PTFE Smooth Hose with Excellent Corrosion Resistance | PASSIONHOSE 13

PTFE Hose Assembly

brass fittings with o-rings

Nylon Covered AN6 SUS304 Braided PTFE Smooth Hose with Excellent Corrosion Resistance | PASSIONHOSE 14

PTFE Hose Assembly

straight JIC female hose ends in carbon steel with zinc-nickel plated

Nylon Covered AN6 SUS304 Braided PTFE Smooth Hose with Excellent Corrosion Resistance | PASSIONHOSE 15

PTFE Hose Assembly

90 deg. elbow JIC female hos ends in carbon steel with zinc-nickel plated

Application

---high temperature, resist chemical---

About our product

High temperature hydraulic, pneumatic and chemical delivery hoses for rubber, automotive, machine tools, shipbuilding, electromechanical, diesel, pressure control, paper and printing industries. For liquids, gases and highly corrosive media with alternating hot and cold heat, it has better performance and longevity than other hoses.
